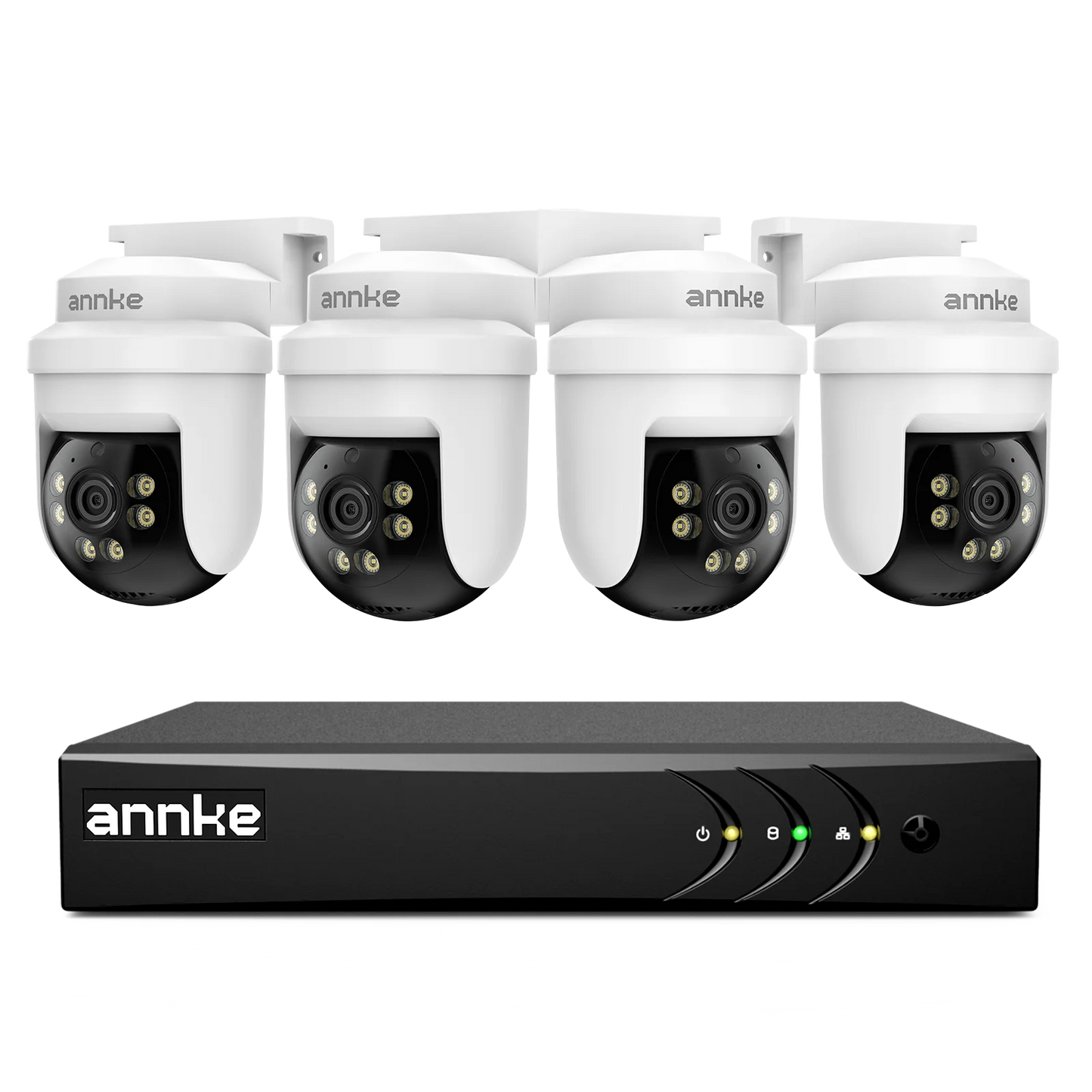

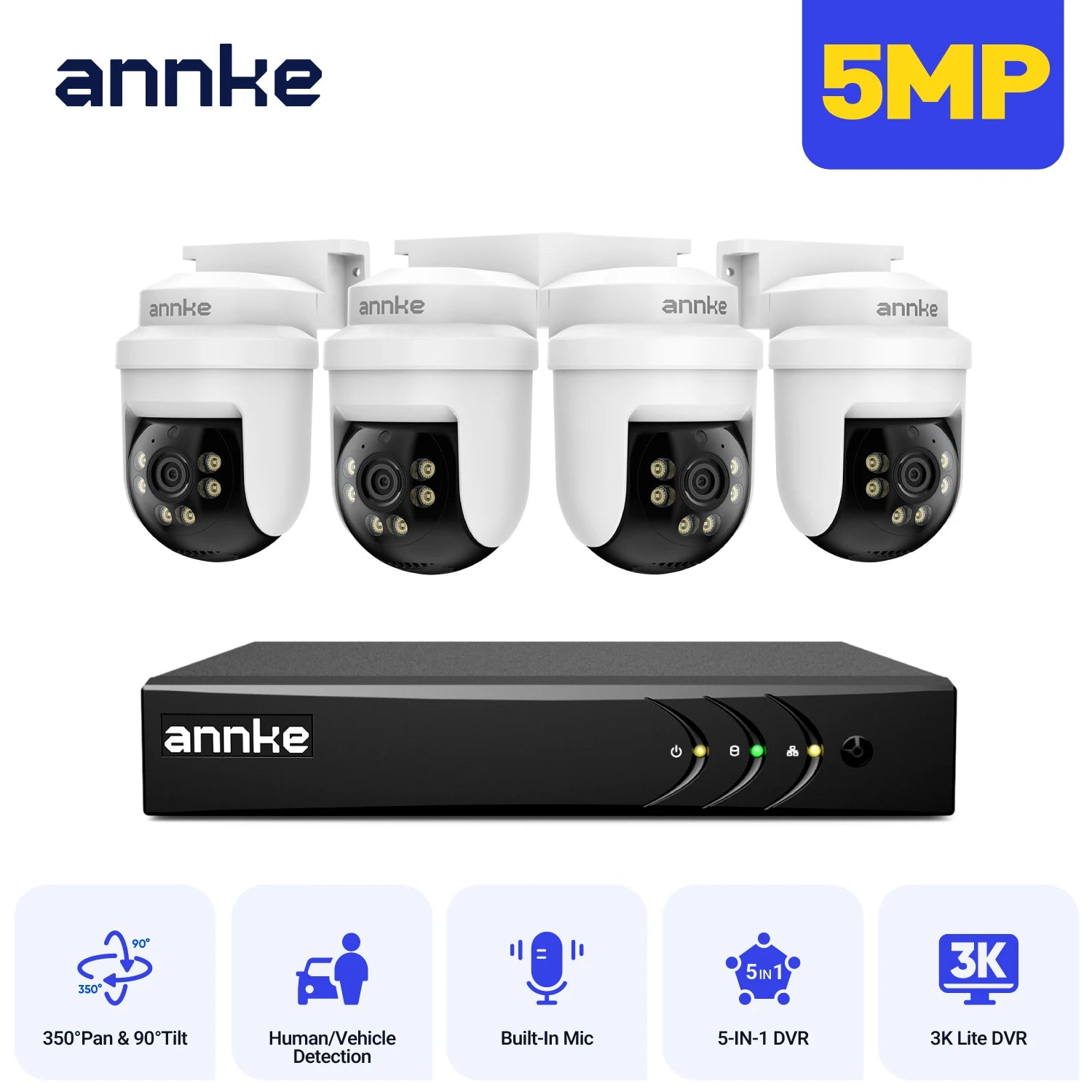

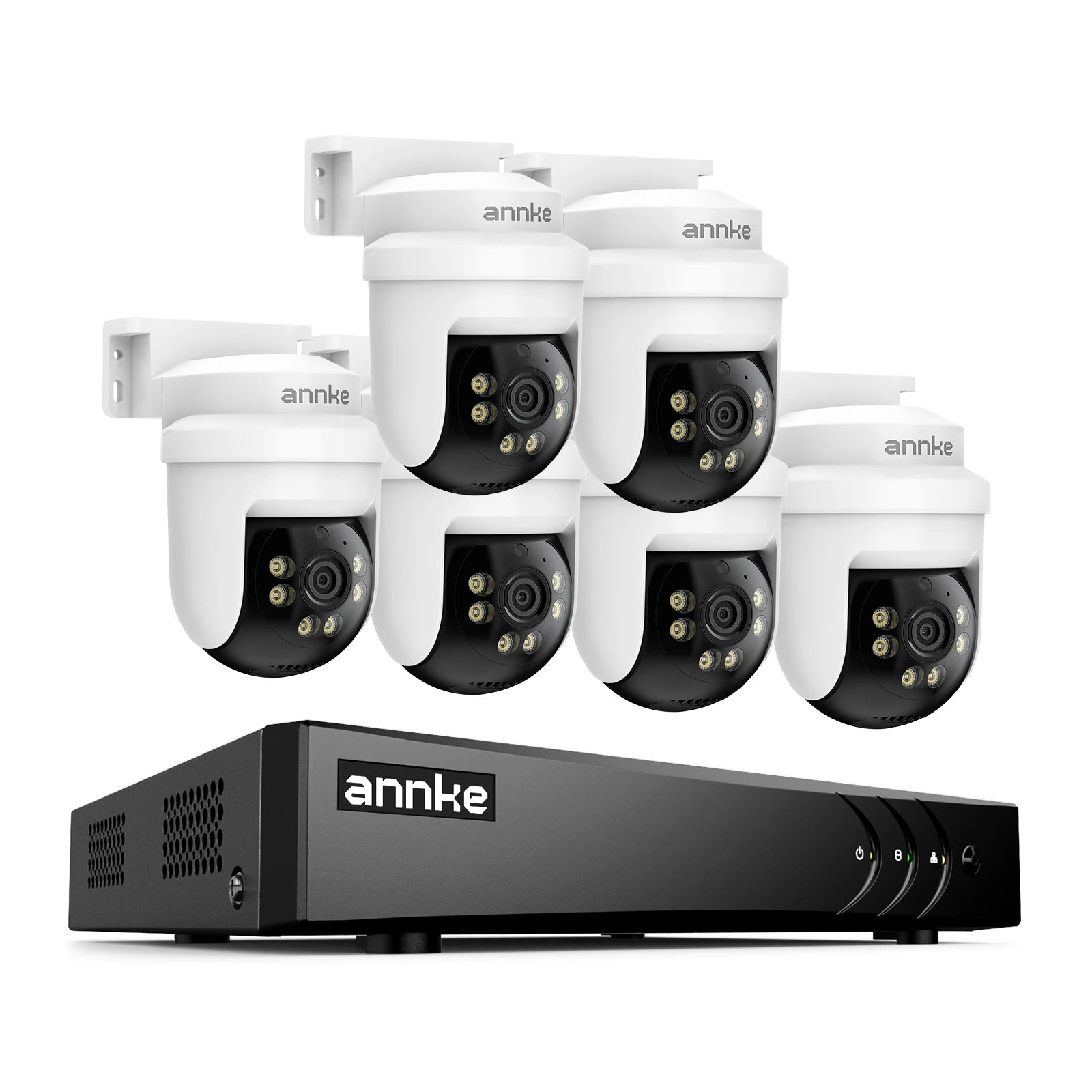

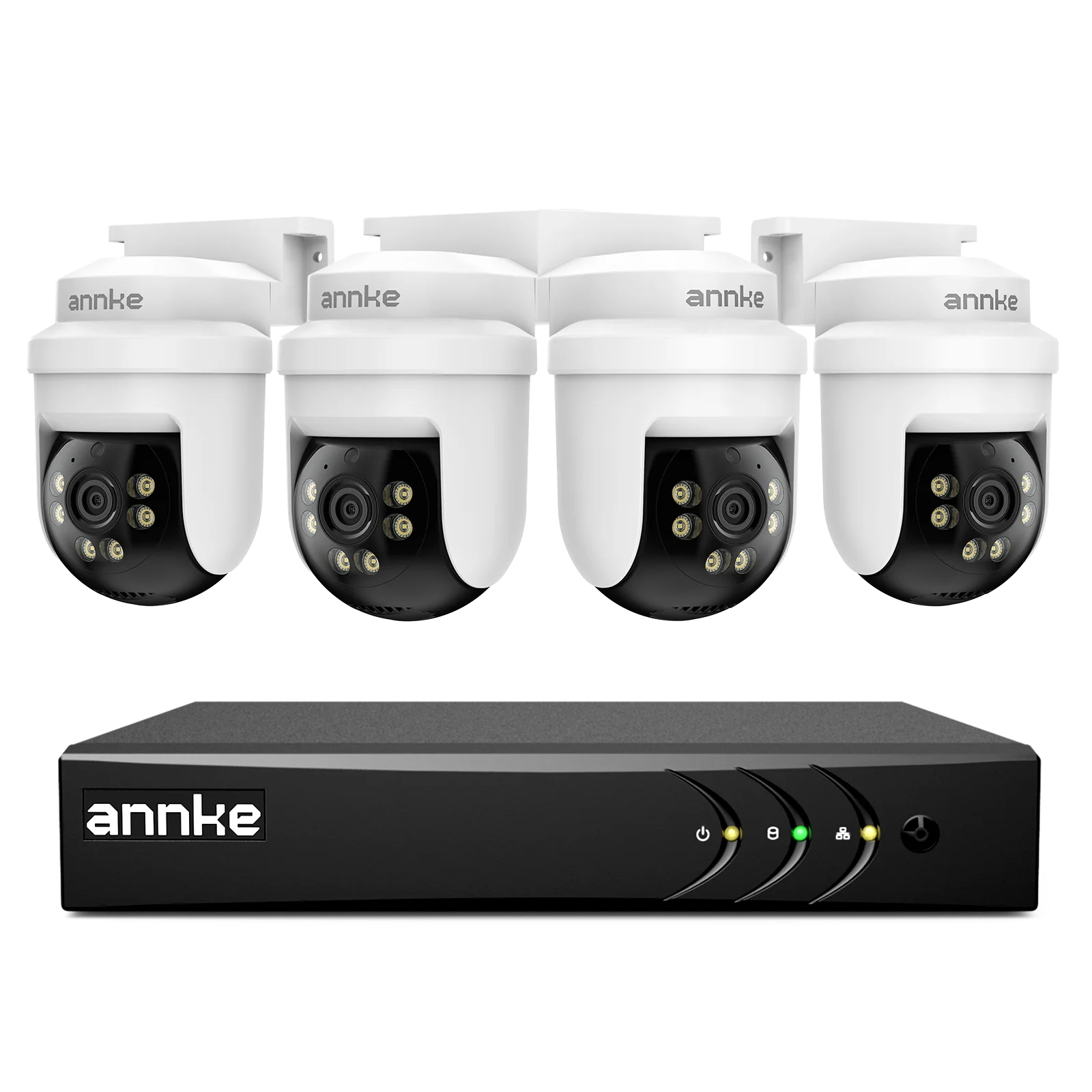

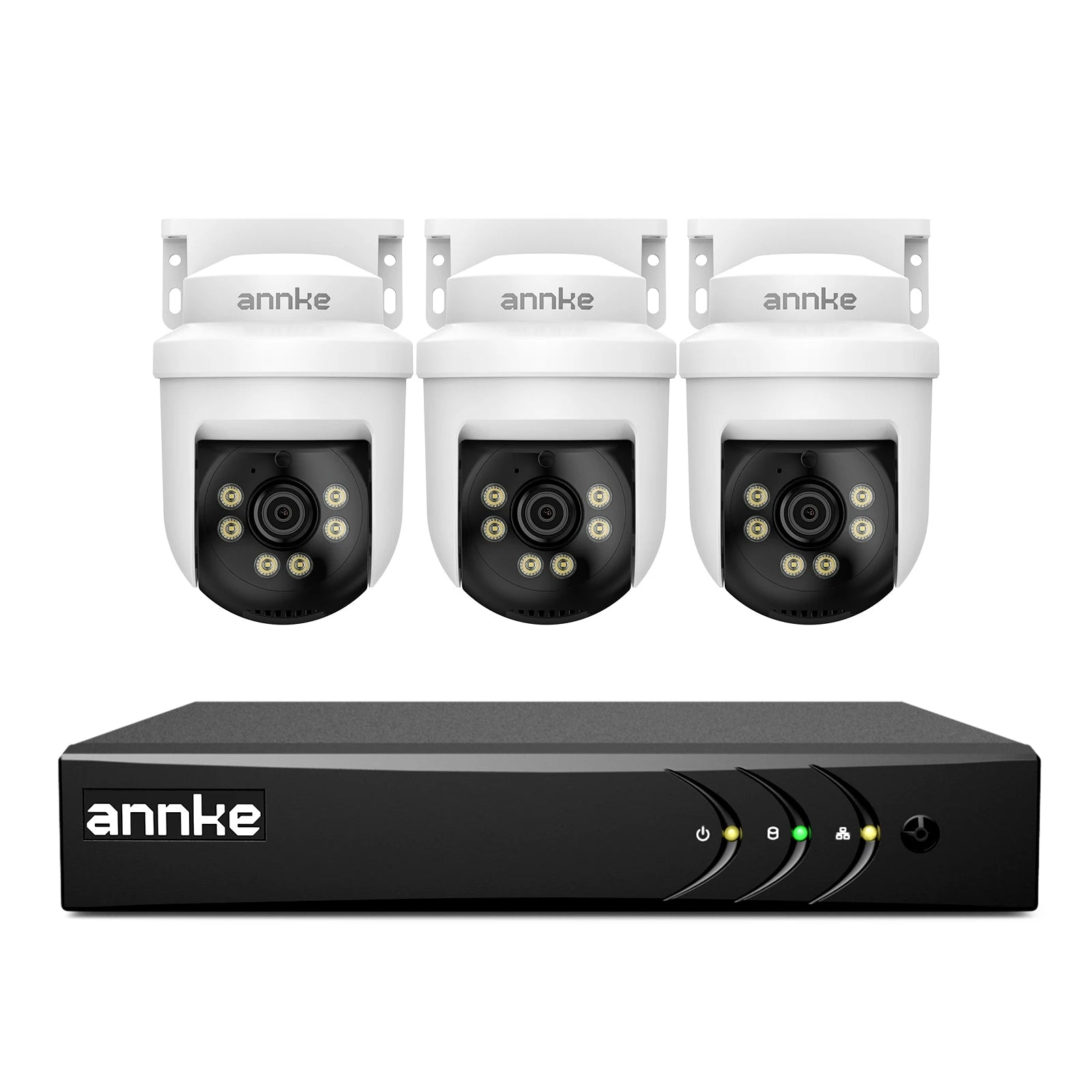

ANNKE 5MP Dome Outdoor Camera Kit With 8 Channel IP65
ANNKE 5MP Dome Outdoor Camera Kit With 8 Channel IP65
Couldn't load pickup availability
You get ultra-sharp 5MP Ultra HD footage and reliable 100ft night vision from weatherproof dome cameras paired with an 8-channel DVR kit.

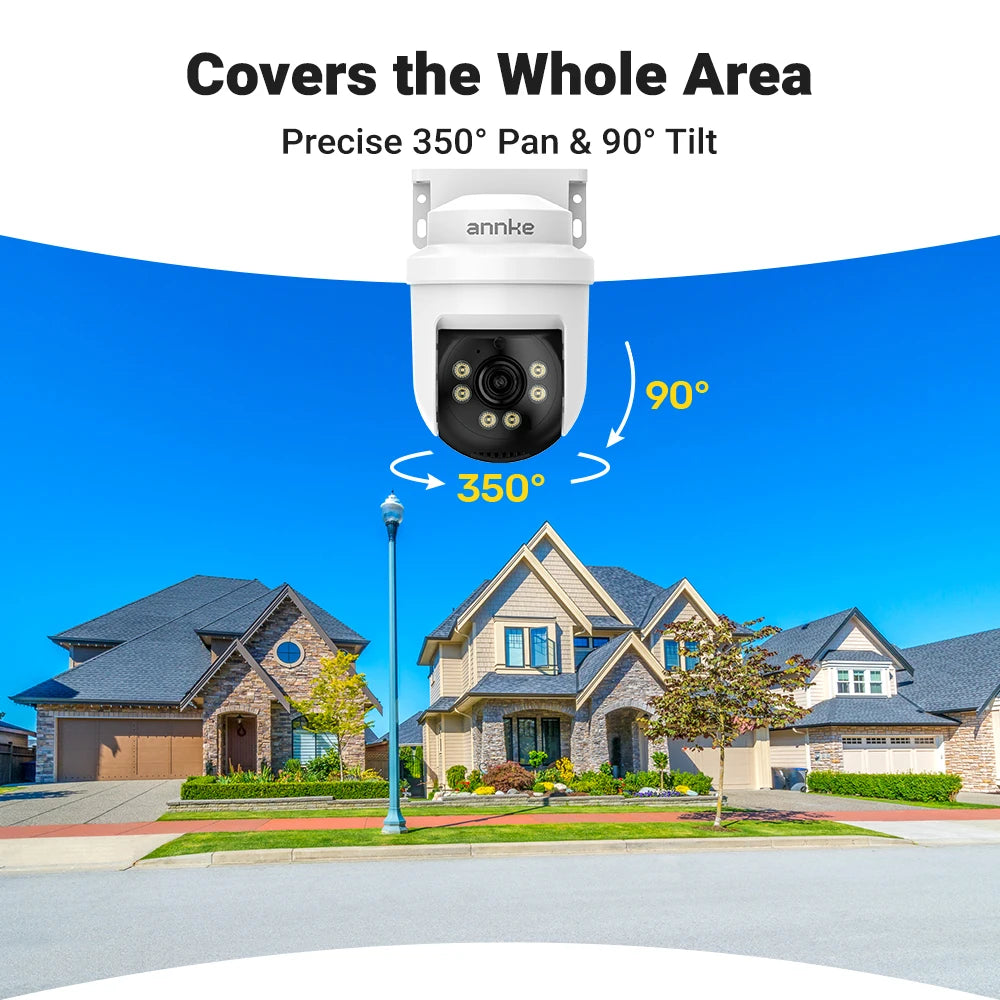

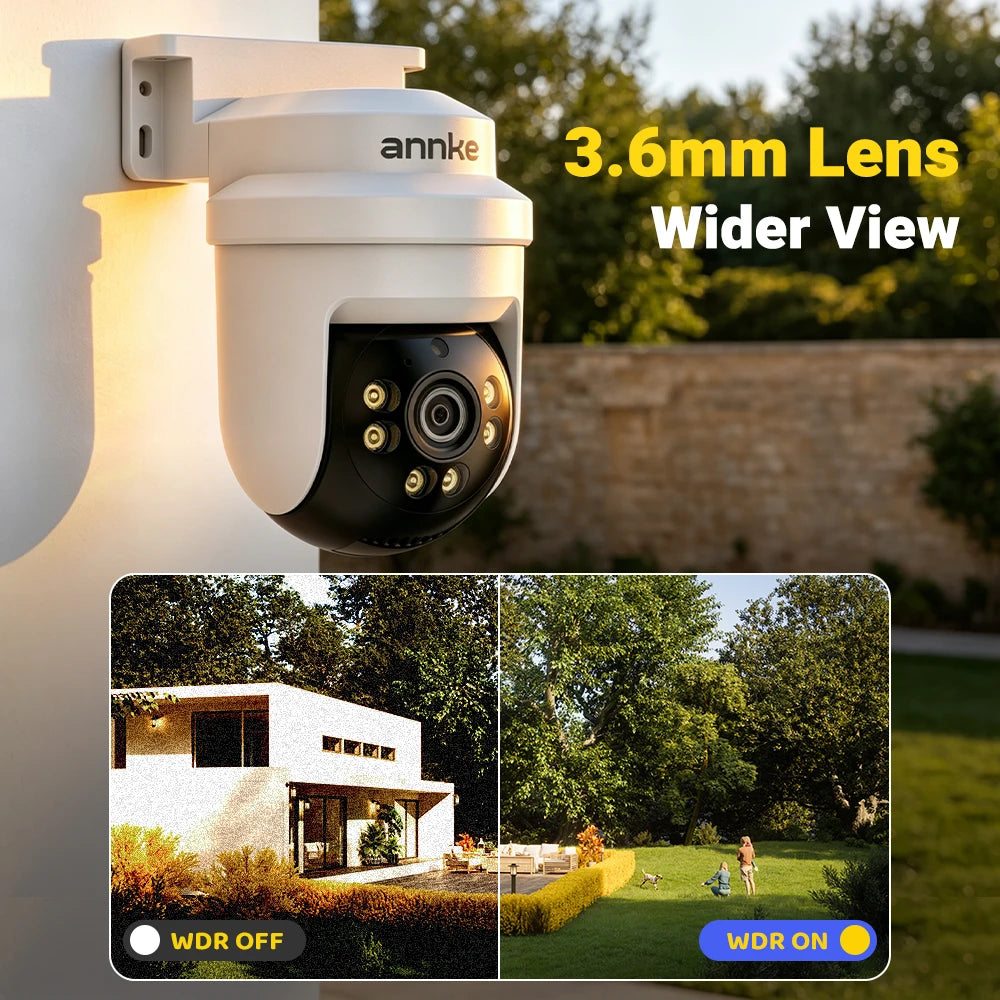

- 5MP Ultra HD resolution (2560x1920) delivers sharper detail than 1080p; the 3.6mm lens covers wide areas; 350° pan and 90° tilt, with 6 IR LEDs for night vision up to 100ft/30m; IP65 weatherproof.
- Built-in microphone provides one-way audio so you can hear events as they happen, alongside clear day/night video.
- AI Motion Detection 2.0 distinguishes humans and vehicles, reducing false alerts by up to 99% and triggering precise recordings.
- H.265+/H.264/H.265 Pro+ compression lowers bandwidth and storage; 8-channel DVR with 2 IP channels (up to 12 in IP-enhanced mode); HDMI/VGA outputs up to 1080P; operates from -14°F to 131°F (-10°C to 55°C) with IP65 rating.
Model Number |
DW81KN |
|
DVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265 Pro+ |
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
|
Video Output |
HDMI and VGA Up to 1080P |
|
Audio Input |
1-ch RCA,8-ch via coaxial cable |
|
Audio Output |
1-ch RCA |
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
IPC Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
8-ch |
|
Network Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
Total Bandwidth |
96Mbps |
|
Remote Connection |
64 |
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
|
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB |
USB2.0x2 |
|
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
|
HD Camera | ||

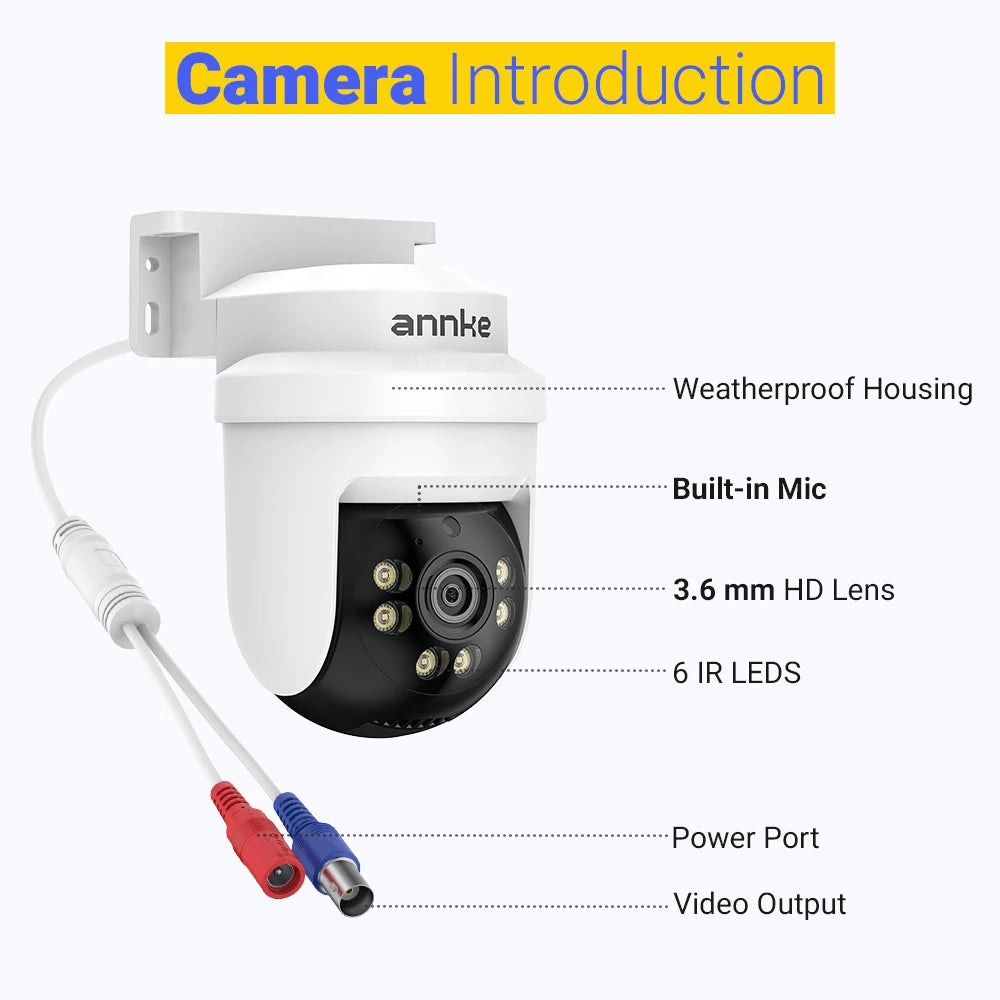

Camera |
Video Resolution |
HDTVI 5MP |
Signal system |
20fps |
|
Image sensor |
Progressive Scan CMOS |
|
Lens |
3.6mm |
|
Min.Illumination |
0.02Lux@(F1.2 AGC ON),0Lux with IR on |
|
Horizontal rotation angle |
350° |
|
Vertical rotation angle |
90° |
|
Number of Infra-Red LEDs |
6 |
|
Night Vision Distance |
Up to 100ft/30m |
|
DNR |
3D DNR |
|
Wide Dynamic Range |
Digital WDR |
|
IR Cut Filter |
Yes |
|
Audio |
Built-in Mic,one way audio |
|
Video Output |
HD BNCx1 |
|
General |
Housing |
Plastic |
Operating Power |
DC12V |
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP65 |
|
Size |
130*85*115mm(L*W*H) |
|
Weight |
0.57lbs / 260g |
|
